實驗?zāi)康模?/h2>

構建一個高可用的Nginx集群。

實驗要求：

1.基于nat結構實現;

2.實現高可用;

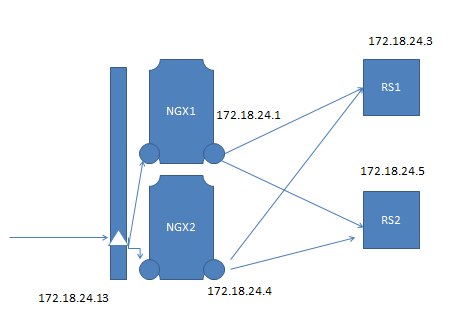

實驗拓?fù)鋱D形：

實驗步驟：

1.按圖配置各個網卡地址;

2.設置Nginx主機(下面帶#的部分為從所需要的配置，其他則一樣)

        Yum install httpd nginx
        Vim /etc/httpd/conf/httpd.conf
        Listen 80 àListen
8080
        Vim /etc/nginx/nginx.conf
        http{
upstream websrvs {
server 172.18.24.3:80;
server 172.18.24.5:80;
server 127.0.0.1:8080 backup;
            }
        }
        vim /etc/nginx/conf.d/default.conf
location / {
proxy_pass http://websrvs;
        }
        vim /etc/keepalived/keepalived.conf
        global_defs {
notification_email {
root@localhost
           }
notification_email_from keeplived@localhost
smtp_server 127.0.0.1
smtp_connect_timeout 30
router_id tes1t
vrrp_mcast_group4 224.0.100.24
        }
        vrrp_script ‘ngxstatus’ {
script “killall -0 nginx && exit 0 || exit 1”
interval 1
weight -5
        }
        vrrp_instance myr1 {
state MASTER
#BACKUP
interface eth0
#ens38
virtual_router_id 67
priority 100                   #98
advert_int 1
authentication {
auth_type PASS
auth_pass UIpYPPDI
            }
track_script {
 ngxstatus
            }
virtual_ipaddress {
172.18.24.13/16 dev eth0
#ens38
            }
notify_master “/etc/keepalived/notify.sh master”
notify_backup “/etc/keepalived/notify.sh backup”
notify_fault “/etc/keepalived/notify.sh fault”
        }
        Systemctl start httpd
        Systemctl start nginx
        Systemctl start keepalived

3.配置RS主機

Yum install httpd

Vim /var/www/html/index.html

4.檢測：curl http://172.18.24.13

檢測結果：實現高可用Nginx集群。
